Pass every endurance test: With a base body made of a light metal alloy specially developed for measuring devices and equipped with high-quality branded components, "smile" devices are extremely robust and durable. Whether for large-scale production or medium-sized companies - the different sizes, electronics and equipment variants make "smile" ideal for day-to-day use in any production facility, even right next to the CNC machine.
The ZOLLER »smile« entry-level models are equipped with high-quality brand components and are available with the three measuring device software versions "pilotBasic", "pilotStarter" and "pilot 2 mT". You get precise results straight away - without the need for training. Ideal for all standard tools and designed for the tool requirements of medium and small batch sizes. Robust, space-saving and flexible placement directly next to the CNC machine, in the workshop or in production islands.

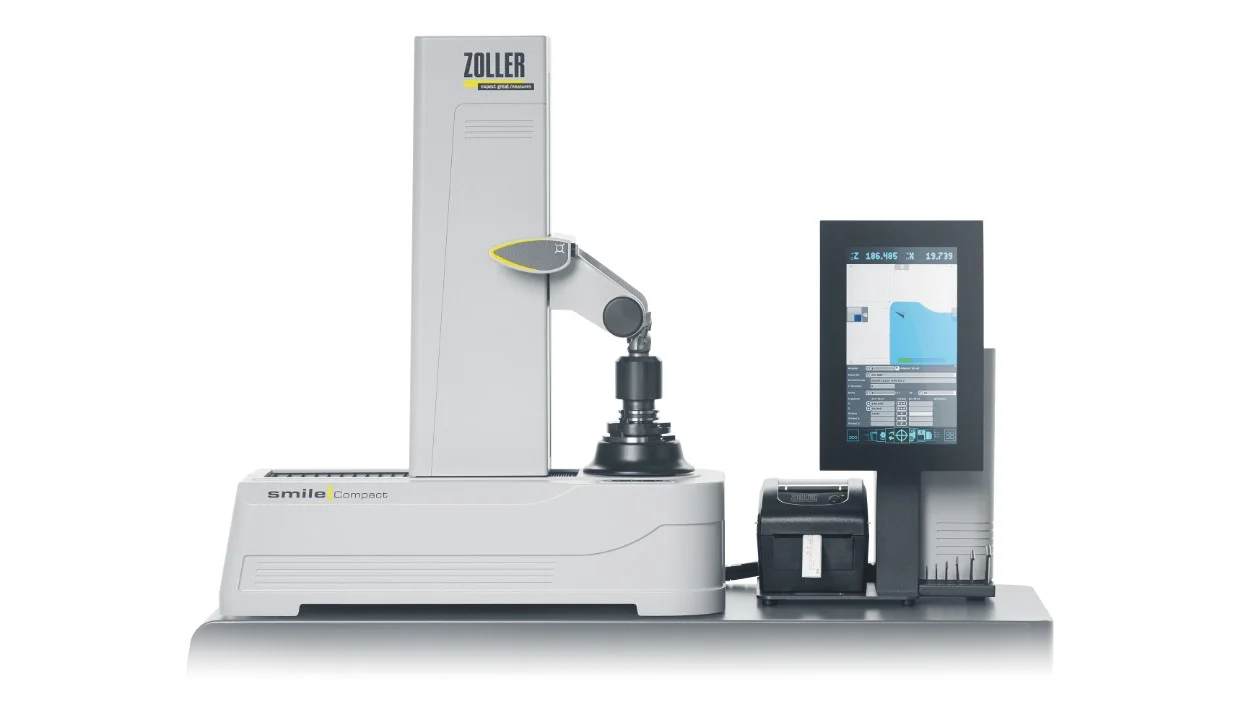

In short - the »smileCompact« is the perfect introduction to the world of ZOLLER.
One-hand operating handleOne-hand operating handle
One-hand operating handle

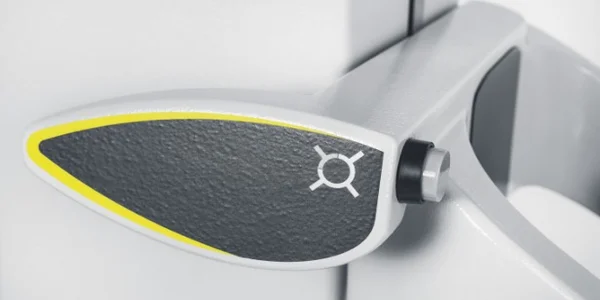

For quick and safe adjustment of the measuring carriage in both axes at the touch of a button.
Image Processing | OpticsImage Processing | Optics
Image processing | Optics

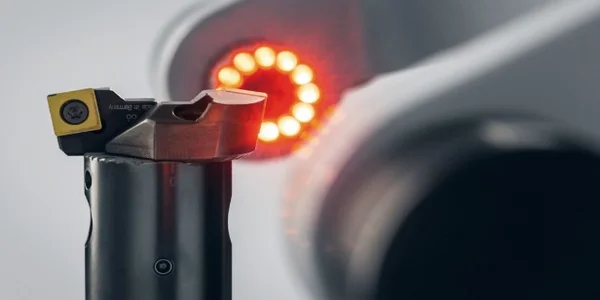

Reliable precision guaranteed - with telecentric lens and CCD camera including integrated 360° LED incident light for cutting edge inspection.
High-precision spindle SK50High-precision spindle SK50
High-precision spindle SK50

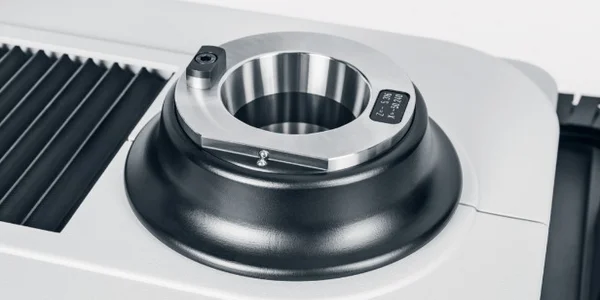

Impresses with integrated calibration spheres and a concentricity of 0.002 mm. Separate zero gauges are superfluous.
User interfaceUser interface
User interface

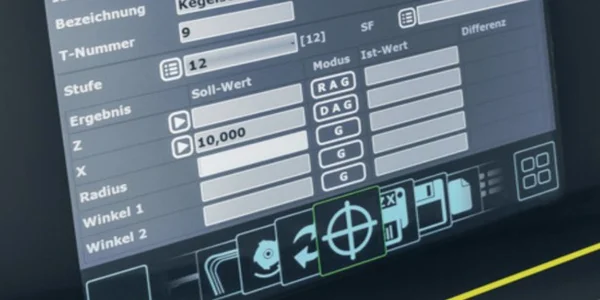

ZOLLER measuring device control (Panel PC) with 13" touch display.
Table electronicsTable electronics
Table electronics

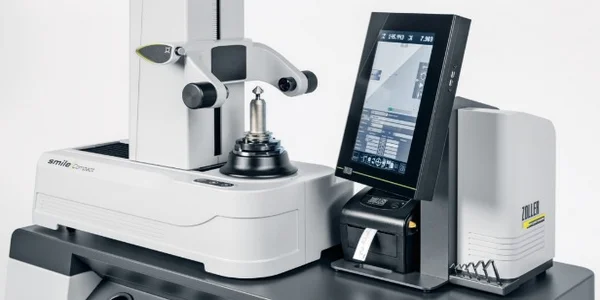

Desk electronics with variable monitor position and space for label printer and key rack.
Label printerLabel printer
Label printer

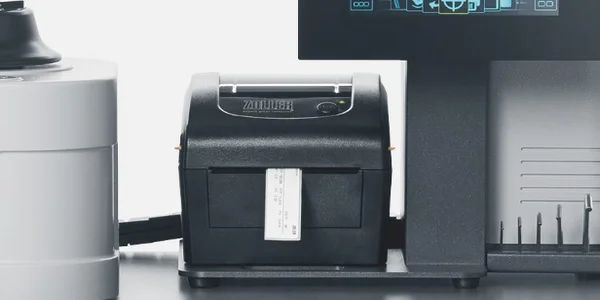

The label printer outputs the necessary tool parameters, such as ID and adapter numbers, Z, X, radius dimensions and angles as plain text or codes.
Membrane keypadMembrane keypad
Membrane keypad

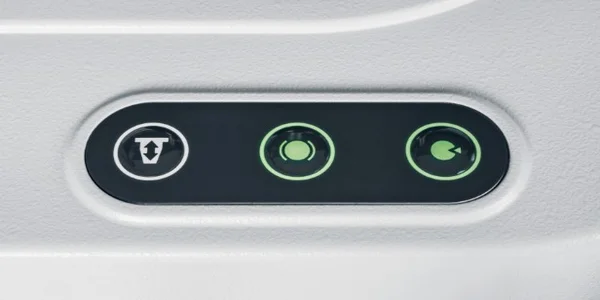

The membrane keypad controls all power-operated spindle functions such as spindle brake, 4 x 90° locking and optionally available vacuum clamping.
One-hand operating handle
For quick and safe adjustment of the measuring carriage in both axes at the touch of a button.
Image processing | Optics
Reliable precision guaranteed - with telecentric lens and CCD camera including integrated 360° LED incident light for cutting edge inspection.
High-precision spindle SK50
Impresses with integrated calibration spheres and a concentricity of 0.002 mm. Separate zero gauges are superfluous.
User interface
ZOLLER measuring device control (Panel PC) with 13" touch display.
Table electronics
Desk electronics with variable monitor position and space for label printer and key rack.
Label printer
The label printer outputs the necessary tool parameters, such as ID and adapter numbers, Z, X, radius dimensions and angles as plain text or codes.
Membrane keypad
The membrane keypad controls all power-operated spindle functions such as spindle brake, 4 x 90° locking and optionally available vacuum clamping.

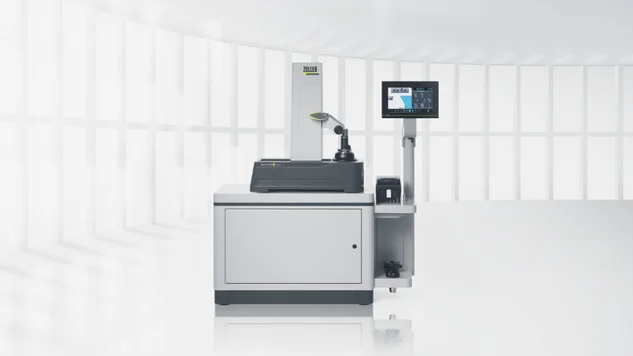

With "pilotBasic"
to "smileBasic"
The "pilotBasic" electronics with 7-inch monitor make "smile" devices a "smileBasic". You benefit from quick training and fast measuring, setting and checking of tools. The focus is on the basic requirements of professional tool presetting: fast measurement results at the touch of a button and cutting edge inspection with 12x magnification.

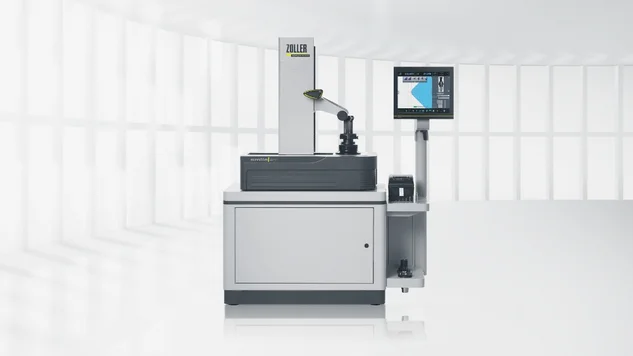

With "pilotStarter" to "smileCompact"

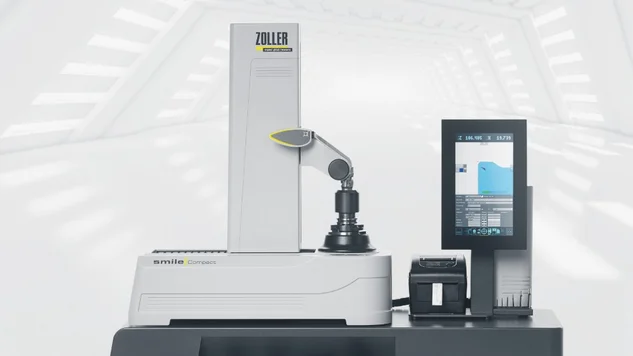

You receive a "smileCompact" presetting device with the basic device plus the "pilotStarter" measuring device software. This is characterized by its simple operation and practical functions: Measuring macros with tool images for quick and easy measuring, automatic cutting edge shape and measuring range detection, determination and measurement of the maximum contour and the "compass" navigation system
navigation system for precise and operator-independent nominal dimension positioning.

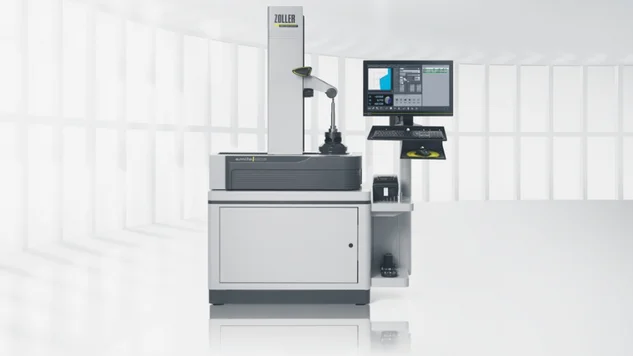

With "pilot 2 mT" to "smileAdvance"

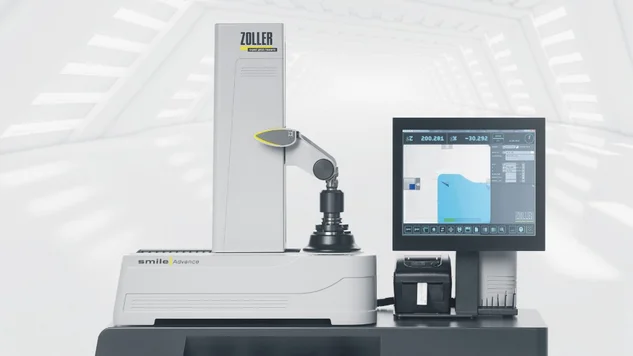

With a ZOLLER "smileAdvance" presetting and measuring machine and the "pilot 2 mT" measuring machine software, you simply get more: more measuring functions, more space thanks to the 17" color monitor, more flexibility thanks to areas that can be adjusted to any size, such as the cutting image, and more functions: Management of your machines, set-up sheets and graphics and control-compatible tool data transfer to your machine.
Change the efficiency of your production
"smile" will reduce your production costs and give your machines and tools more production time. It is a precise investment that pays for itself quickly.
