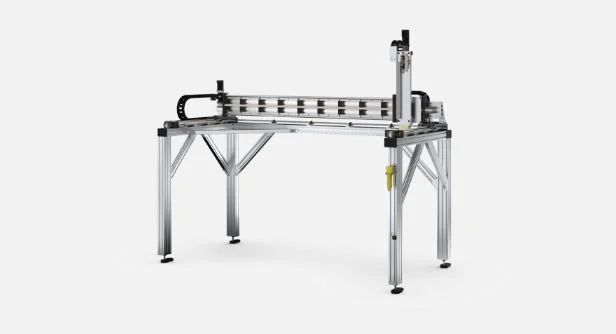

Agile spatial gantry robot
Room gantry robot - guarantees reliable handling of your tools.
Manual pallet truck
Pallet trolley - delivers the »smartPallet tool pallet« for the automated measuring process. The pallet trolley is controlled manually by an operator.

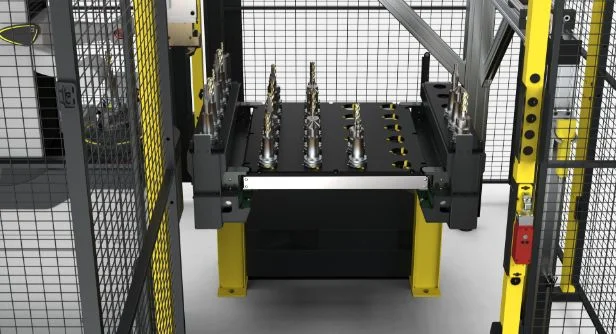

Mobile »smartPallet system«
»smartPallet system«- for the provision of tools for automation systems. Thanks to the innovative pallet technology, tools can be reliably picked up and then transported manually or automatically to the various systems.

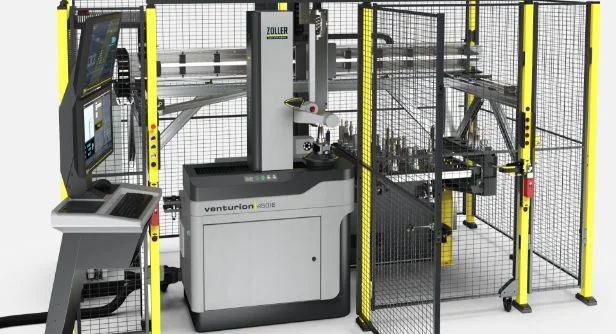

Precise setting and measuring device
Setting and measuring machine »venturion« - for the fully automated measurement of tools.

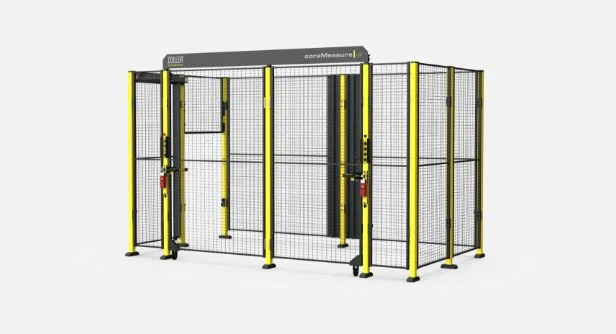

Tested protective housing
Protective housing - provides 360° all-round protection to safeguard your system in accordance with the latest standards and directives. The protective housing is part of the safety concept of the automation system, which is certified in accordance with the international standard IEC/EN 61010-1 and cNRTLus.

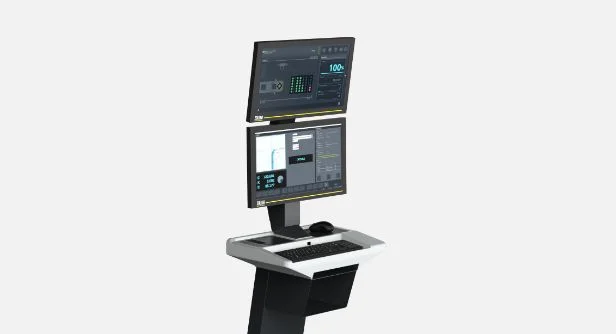

Server-based control software
Control software - for operating the automation system. The control software can be displayed on various display devices (monitor, tablet or smartphone).

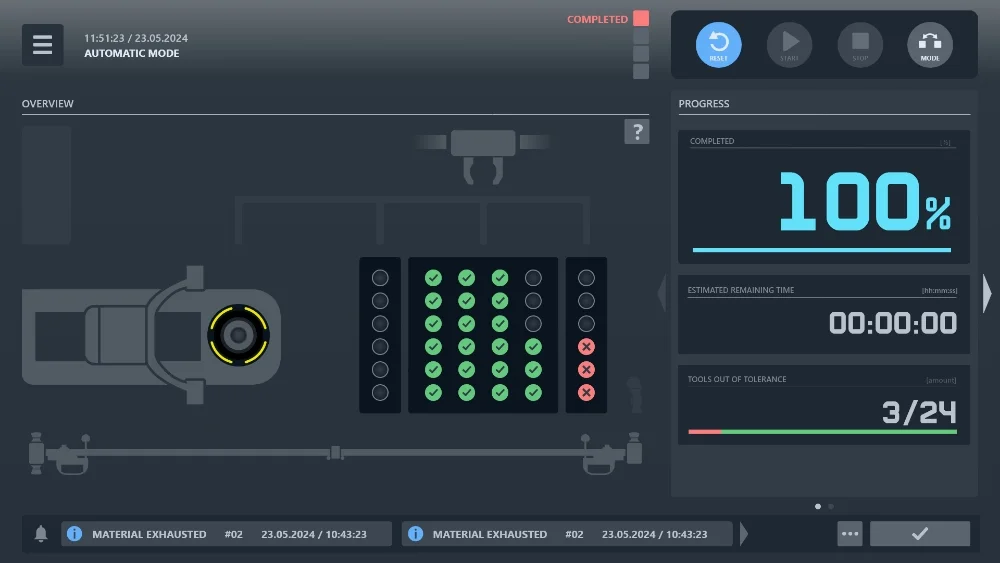

»coraMeasure LG user interface«
Each of the automation cells is controlled via the intelligent »coraMeasure LG user interface«(start, stop, pause). This convenient user interface also provides a clear overview of status, progress and error management. Furthermore, analysis tools show, for example, the number of tools per day or the number of reject tools. The user interface is also equipped with preventive maintenance: every movement and every stroke is tracked and counted so that necessary maintenance measures can be initiated automatically before the individual components break or unpleasant downtimes occur.
