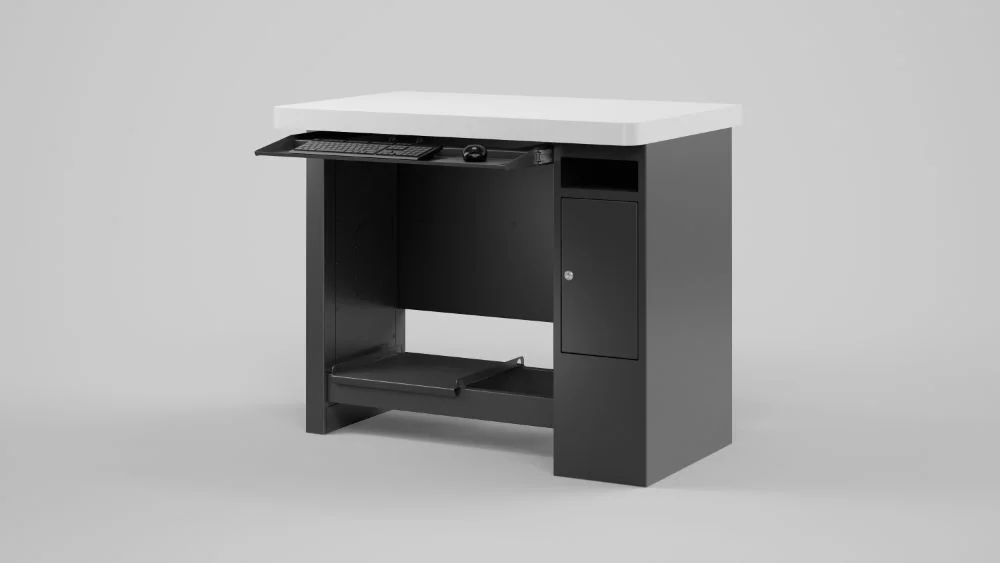

Stable and secure positioning of the »pomBasic« and »pomBasicMicro« inspection device as a standing workstation. Includes pull-out shelf for mouse and keyboard.

Stable and secure positioning of the »pomBasic« and »pomBasicMicro« inspection device as a seated workstation for optimum comfort, even for time-consuming inspection tasks. Includes pull-out shelf for mouse and keyboard.

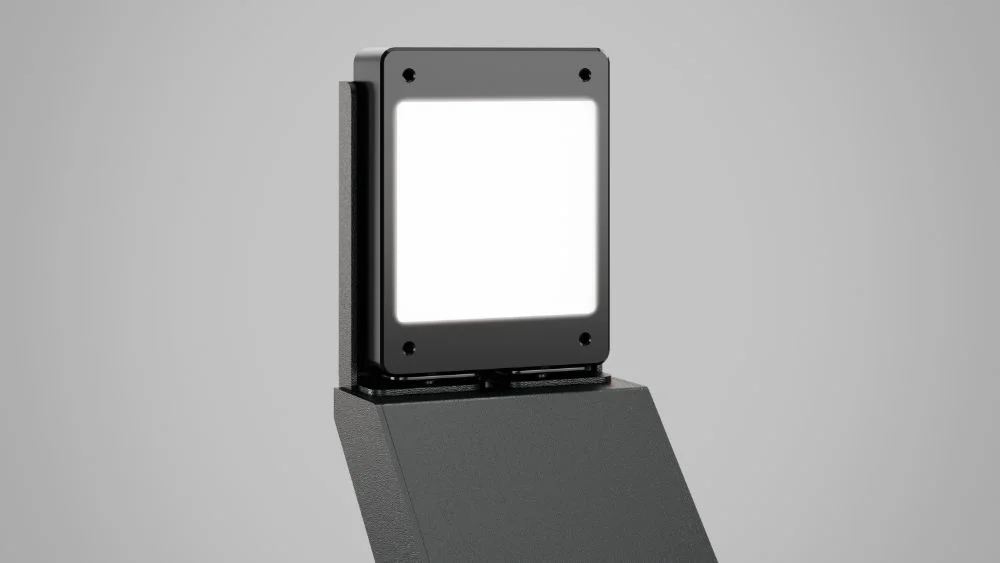

The diffuser (LED flat light) enables transmitted light measurement in the peripheral area. For this purpose, the diffuser is positioned opposite the video microscope system. This allows external contours, step lengths, tip angles and much more to be measured.

Diffusor white for »pomBasic«,
Diffusor red for »pomBasicMicro«

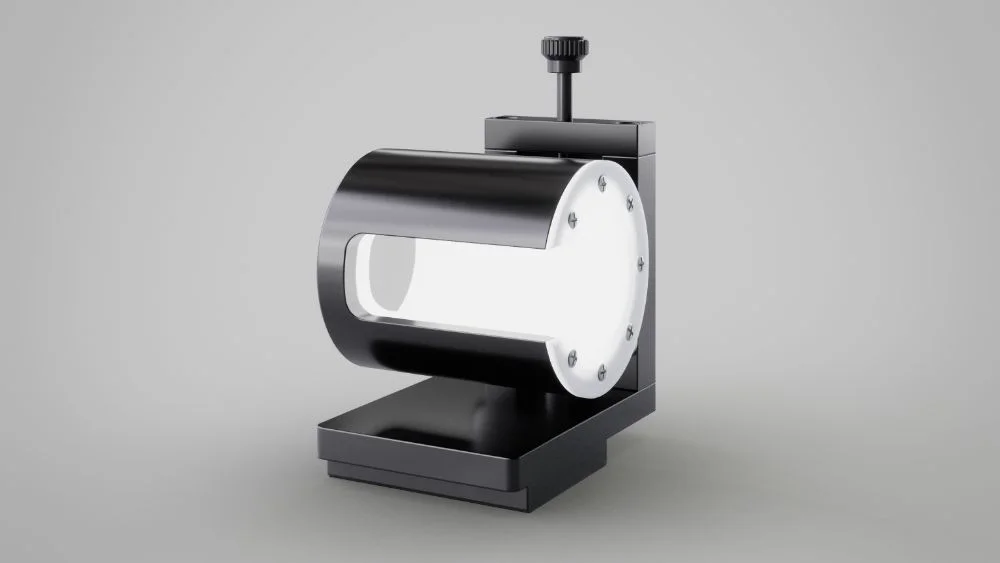

Height-adjustable additional lighting for optimum, high-contrast illumination of even the smallest areas along the tool cutting edge - for radial and axial incident light measurements.

»pomLightTube« white for »pomBasic«,
pomLightTube red for »pomBasicMicro«

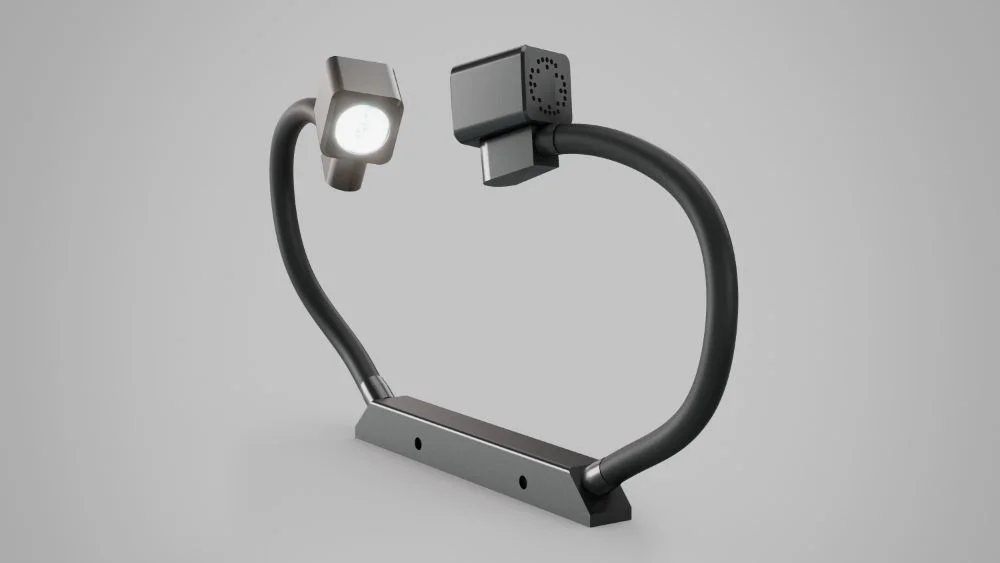

The dimmable additional lighting consisting of two LED spots can be flexibly positioned in relation to the tool to provide optimum illumination even for undercut tool geometries.

White LED spots for »pomBasic«,
Red LED spots for »pomBasicMicro«

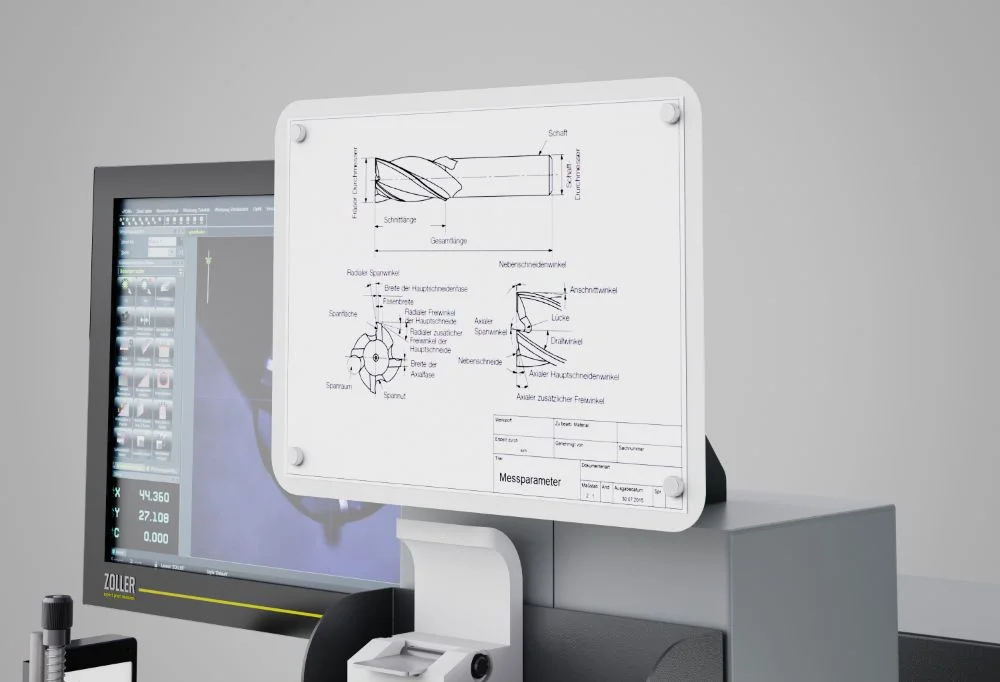

Ideal for attaching drawings in the immediate vicinity of measurements. The magnetic ball joint allows flexible and optimum alignment for the operator. The drawings can be easily fixed and quickly changed using magnets.

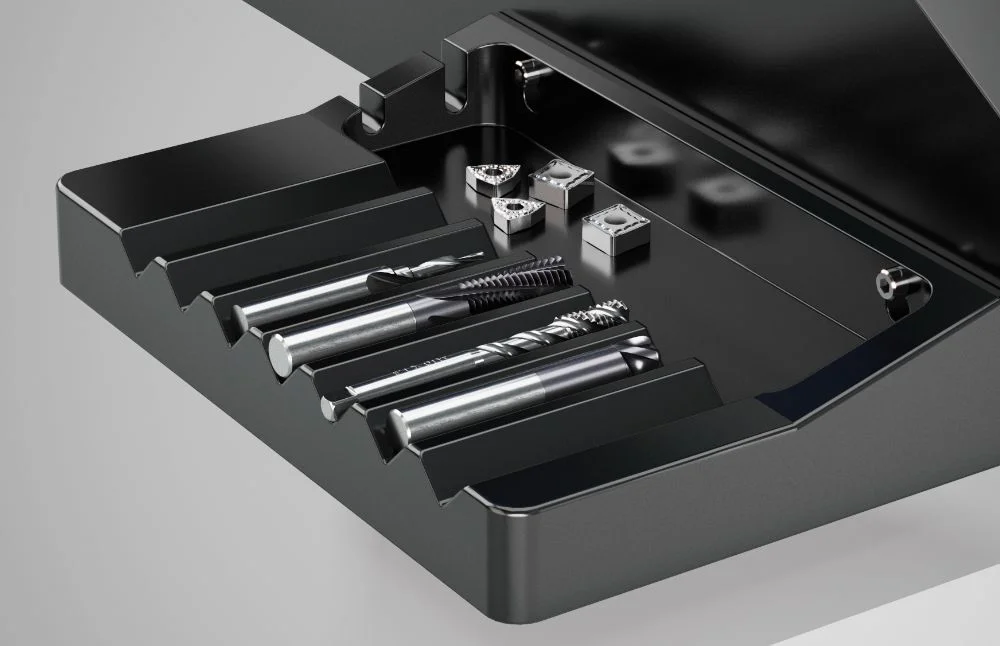

The tray attached to the left-hand side of the inspection device allows tools with a maximum shank size of D 50 mm to be stored carefully. The tray also offers sufficient space for small parts and indexable inserts.

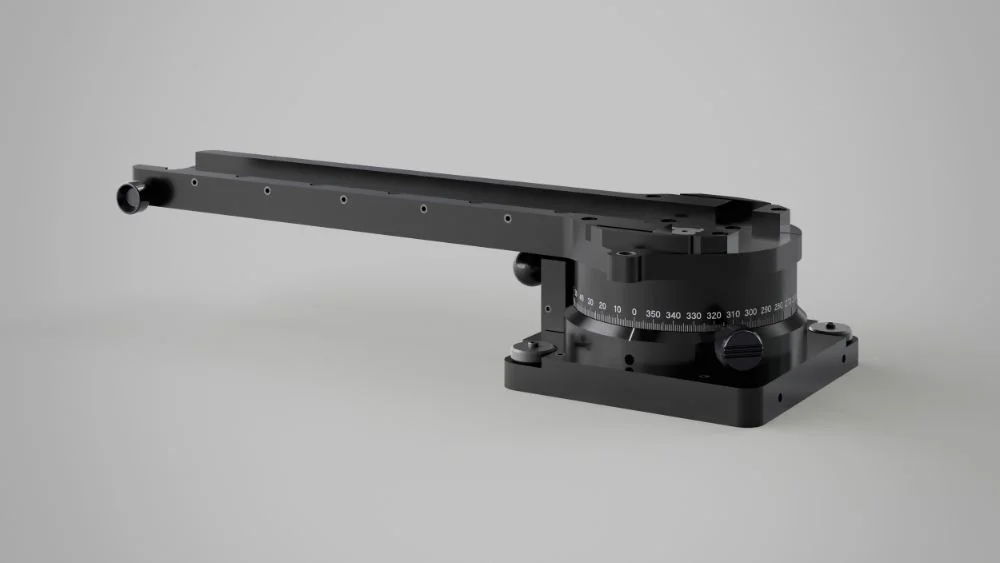

For very long tools such as drills or reamers, the extended swivel table enables perfect tool fixing.

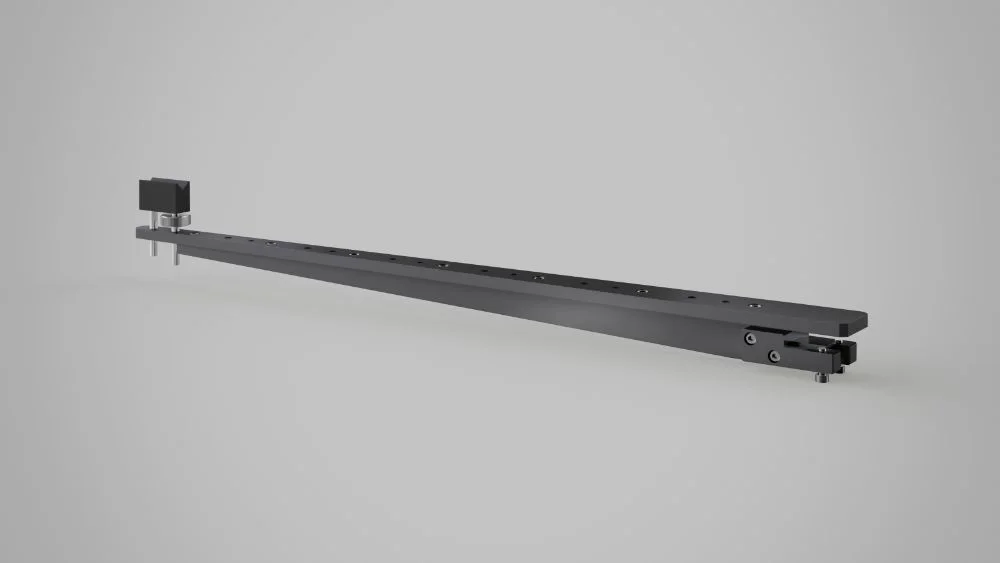

Support for extra-long tools D 3 mm to D 20 mm up to a length of 1000 mm. The support height of the prism can be adjusted. The connection to the extended swivel table is mechanical.

The calibration gauge for the »pomSoft« image processing system is used to correct the distortion of the optics and determine the absolute accuracy of the zoom levels. The calibration gauges can be mounted directly on the swivel table.

The zoom level is selected in the software at the click of a mouse and automatically adjusted by motor, making measuring processes even more reliable and convenient.

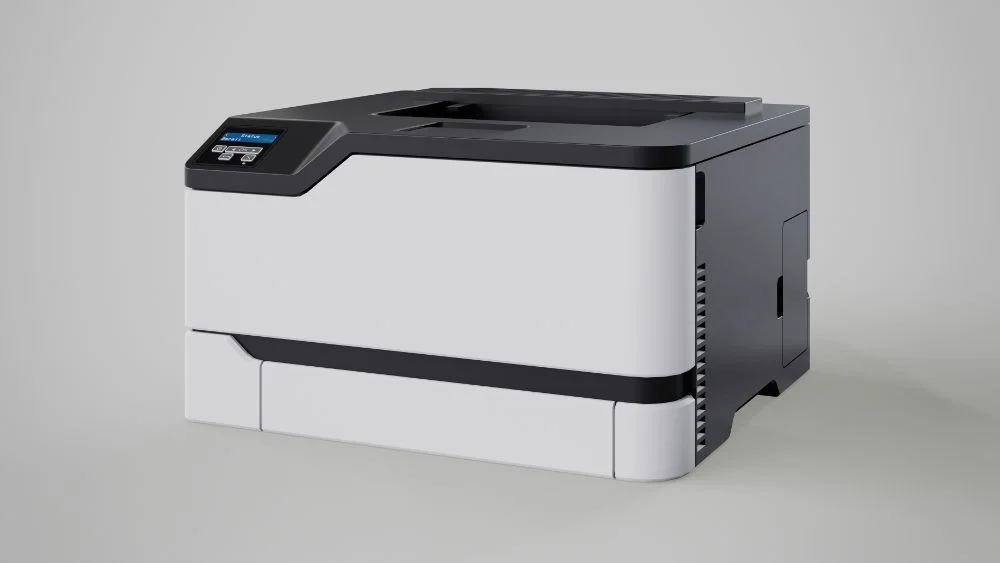

For log printouts directly on the inspection device.

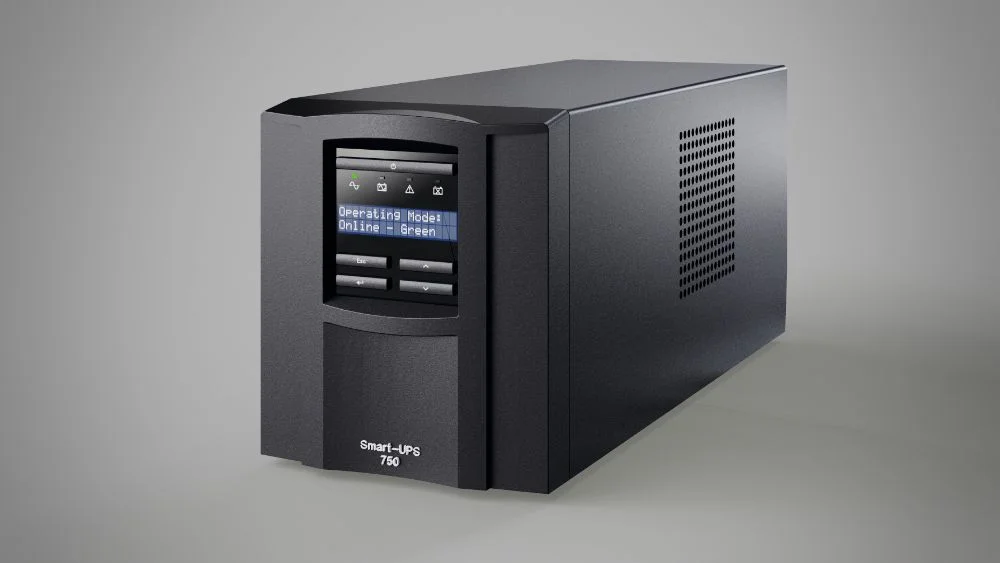

The UPS system for uninterruptible power supply ensures that your computer is shut down properly in the event of a power grid fault to prevent data loss. Mains voltages of 230 V~ (Europe) and 120 V~ (USA) are available.
